Laboratory Dispersion Kneader Mixer Machine
Compounding for rubber, plastic & chemical industries
Features:
This laboratory dispersion kneader mixer machine is the most suitable kneading application for all kinds of Rubber, Plastic and Chemical materials.
This machine with following features:
- High-quality processed products.
- Easy for operation.
- Easy for color changing.
- MD type chamber can move out/rotor and take out for no dead zone cleaning.

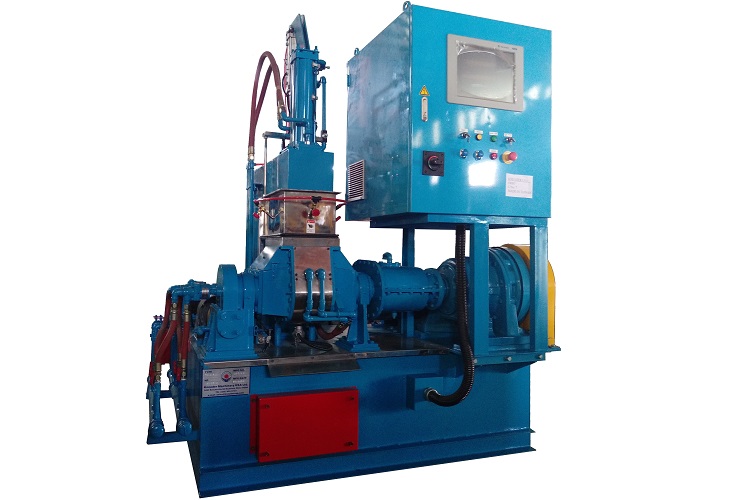

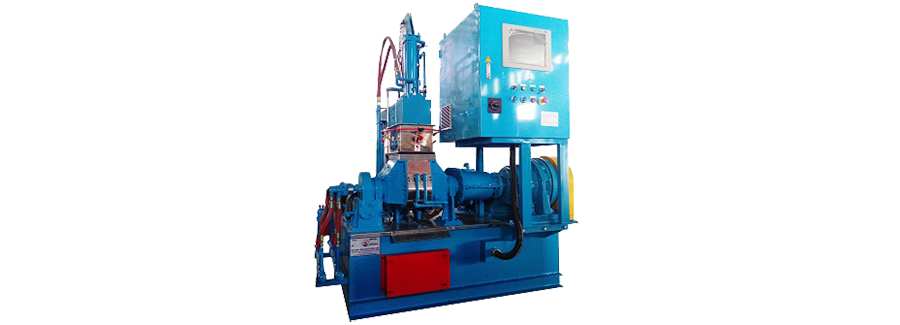

Photos:
Specifications:
Model |
Mixing Capa. |
Main Power(HP) |
Brake Motor |
Tilting Angle |
Temp. Control |
Material Feed |
| KD-3-10 | 3L | 10 | 1/2HP | Max.130° | Auto | FRONT FEED |
| KD-3-20 | 3L | 20 | 1/2HP | Max.130° | Auto | FRONT FEED |
| KD-5-20 | 5L | 20 | 1/2HP | Max.130° | Auto | FRONT FEED |
| KD-10-20 | 10L | 20 | 2HP | Max.110° | Auto | FRONT FEED |
| KD-10-30 | 10L | 30 | 2HP | Max.130° | Auto | FRONT FEED |
| KD-20-40 | 20L | 40 | 3HP | Max.130° | Auto | FRONT FEED |
| KD-20-60 | 20L | 60 | 3HP | Max.130° | Auto | FRONT/REAR |
