Pellets Cooling、Selecting、Collecting Unit
Extrusion & Pelletizing for Rubber、Plastic & Chemical Industries
Features:
This unit include Pellets Cooling, Selecting and Collecting after the pellets cutting from Extruder.

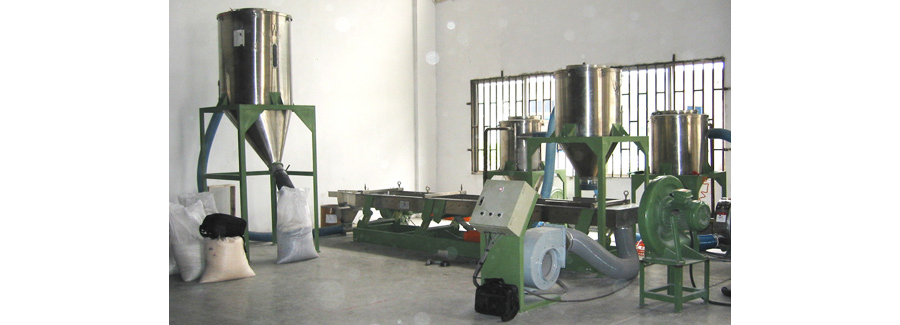

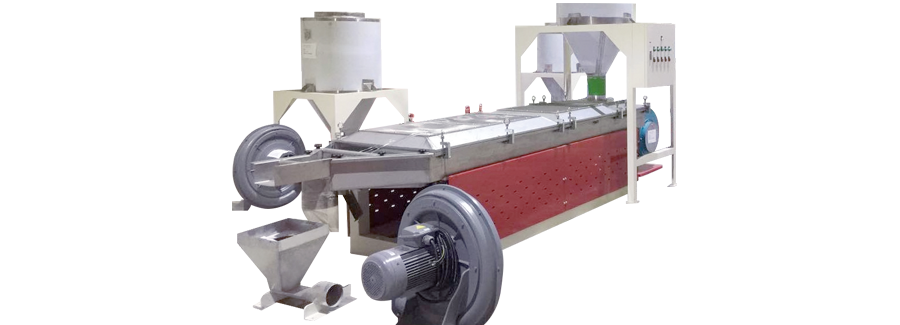

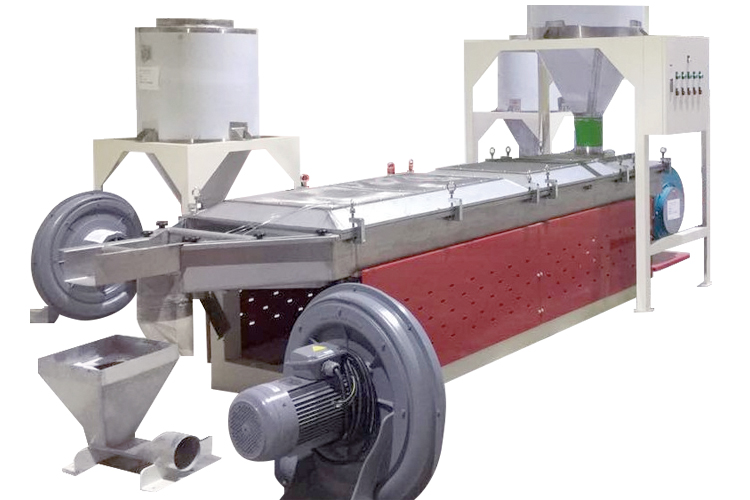

Photos:
Specifications:
| Model | Cooling tank no. | Screen size. | Screen power | Air blower power | Collecting tank no. |
| KD-FR-85-PC | 1 | 2000 mm | 1/3 HP X 2 | 3 HP X 2pc. | 1 |
| KD-FR-100-PC | 1 | 3000 mm | 1/3 HP X 2 | 3 HP X 2pc. | 1 |
| KD-FR-125-PC | 2 | 3000 mm | 1/3 HP X 2 | 3 HP X 2pc. | 1 |
| KD-FR-160-PC | 2 | 4000 mm | 1/3 HP X 2 | 7.5 HP X 3pc. | 1 |
| KD-FR-180-PC | 3 | 4000mm | 1/3 HP X 2 | 7.5 HP X 4pc. | 1 |
