Two in One Twin-Screw Pre-forming Machine
Pre-forming for Rubber, Plastic & Chemical Industries
Features:

his new model TAPER TWIN-SCREW SHEETS PREFORMING MACHINE usage for the rubber compound mixing after DISPERSION KNEADER conveying to the hopper of this machine to go extruding .The barrel is moveable for easy clean.This machine not only simply to operate but also upgrading the work efficiency, and may go with the mixer to do the integrated production to cater for the keen market competition

Photos:

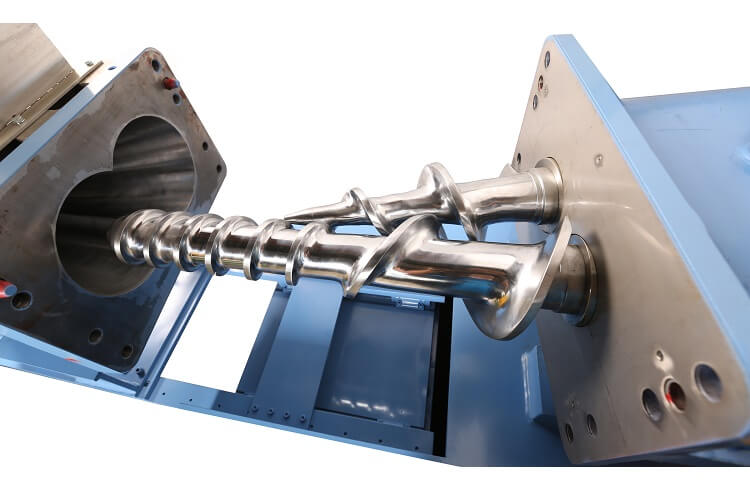

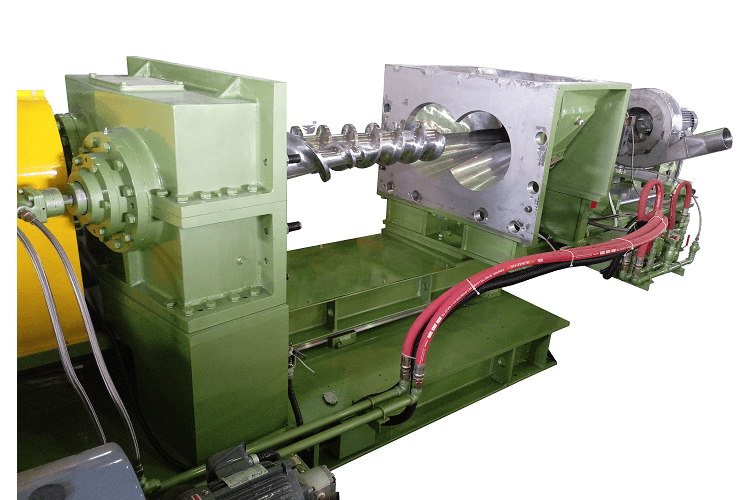

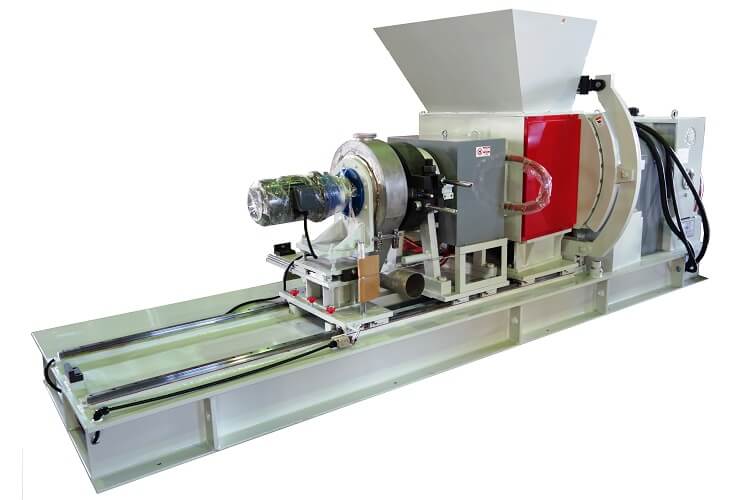

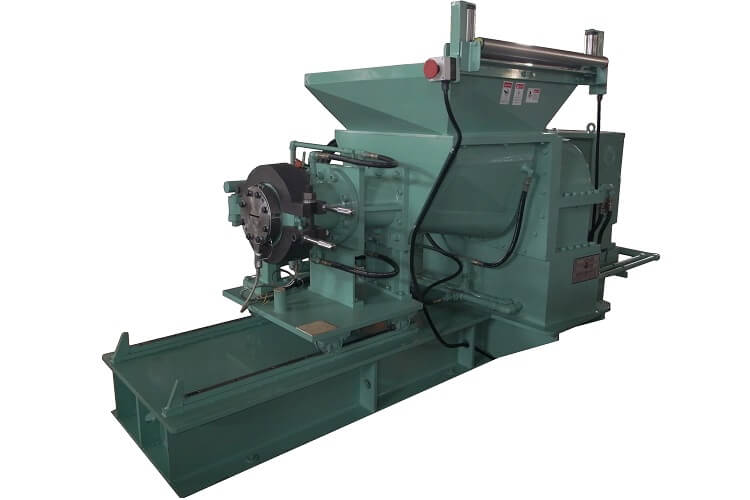

Two in One Twin-Screw Pre-forming Machine
Two in One Twin-Screw Pre-forming Machine
Two in One Twin-Screw Pre-forming Machine
Two in One Twin-Screw Pre-forming Machine
:

MODLE

  Extruder Power

  Extruder R.P.M.

KD-2TR-75-M

 7.5 HP

Max. 35RPM

KD-2TR-100-M

10 HP

Max. 35RPM

KD-2TR-125-M

20 HP

Max. 35RPM

KD-2TR-160-M

30 HP

Max. 35RPM

KD-2TR-180-M

40 HP

Max. 35RPM

KD-2TR-200-M

50 HP

Max. 35RPM
